WikiMHI2/MHI2Q Harman/AisinRecoveryConversion & Cross-flashingEEPROM MAP - MHI2

E2PTool

E2PTool is a utility to creat shell commands to edit MHI2 eeprom.

Useful for manual unit conversions

Region conversions (e.g. US --> EU)
MIB2.0 --> 2.5

This tool makes this process easier and safer.

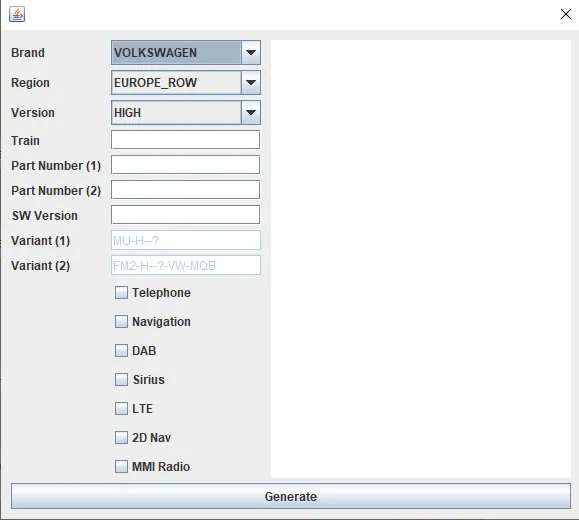

Input field required and press "Generate".

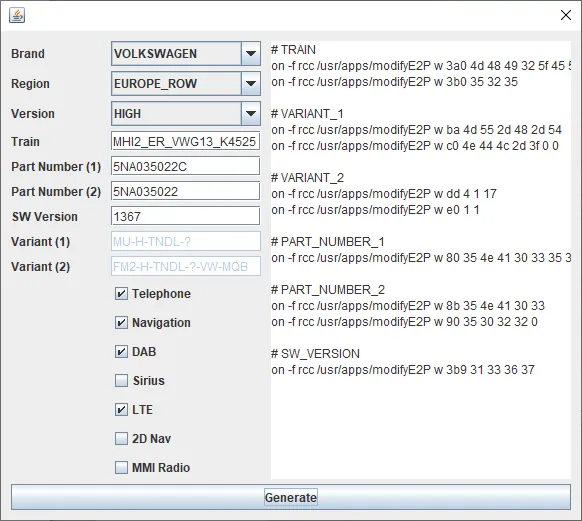

E2PTool will generate a list of commands in the syle of

"on -f rcc /usr/apps/modifyE2P ...."

These have to be executed within RCC shell either via UART or Telnet on the target MHI2 unit

Depending on what you wnat to change, not all commands are required.

In Emergency Mode modifyE2P binary is not available

Restart your unit afterwards to apply changes:

/usr/apps/mib2_ioc_flash reboot

Software Requirements:

Oracle JDK 15.0.1 required to run:

Download link below
https://www.heise.de/download/product/java-standard-edition-java-se-jdk-34074

Download

PreviousEEPROM MAP - MHI2 Next Copy of Conversion of CN/JP/KR/TW/US to EU
