How to prepare mifs-stage1.img and eifs.img for flashing

If on MHI2 you flash mifs-stage1.img or eifs.img without changing the header to ANDROID, MMX will stop booting and SD card access from RCC via /net/mmx/fs/sda0 will be lost. For recovery you'll need to flash NOR backup via JTAG 😉

On MHI2Q you don't need to do changes below!

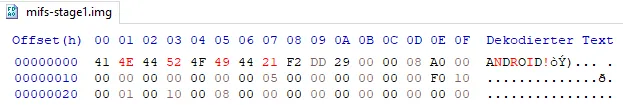

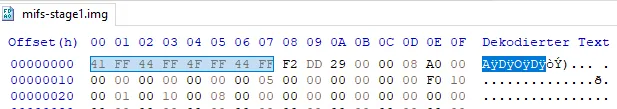

Open mifs-stage1.img in HxD, change AÿDÿOÿDÿ→ANDROID! and save the change.
