Telnet client- Putty

Telnet client

Any Telnet client can be used. The most popular is https://www.putty.org/

The MHIG/MHI2/MHI2Q support two telnet ports to login to RCC and MMX

· IP address for both: 172.16.250.248

· RCC port: 123

· MMX port: 23

Recommendation: Always use RCC, in case of wrongly used flash commands the risk to damage MMX is smaller.

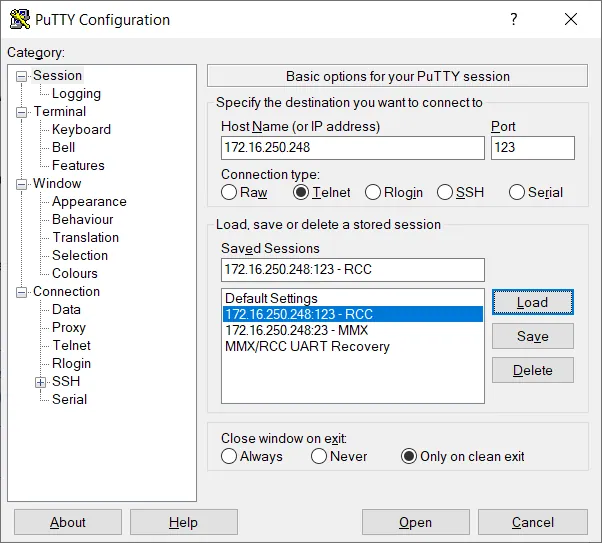

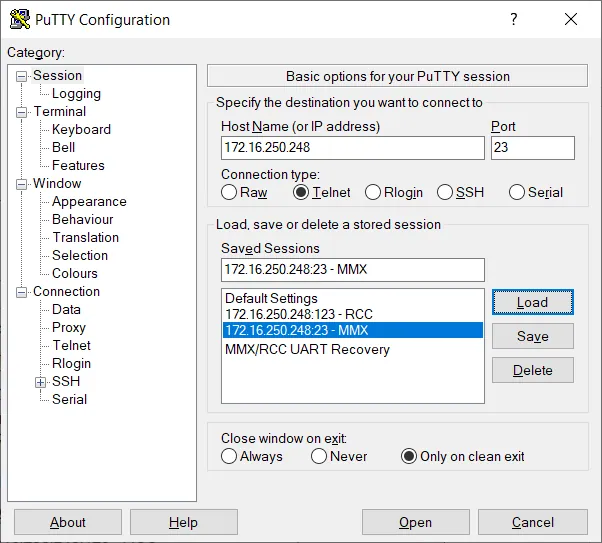

Putty settings

D-LINK or compatible USB to ethernet adapter required

On the PC set IP address to: 172.16.250.123 Net mask: 255.255.255.0

PreviousPC/Laptop network settings Next ExceptionList BUG

Community content mirrored from mibwiki.one. Always make a backup before flashing or coding a unit.
