Connecting TTL adapter to UART on quadlock

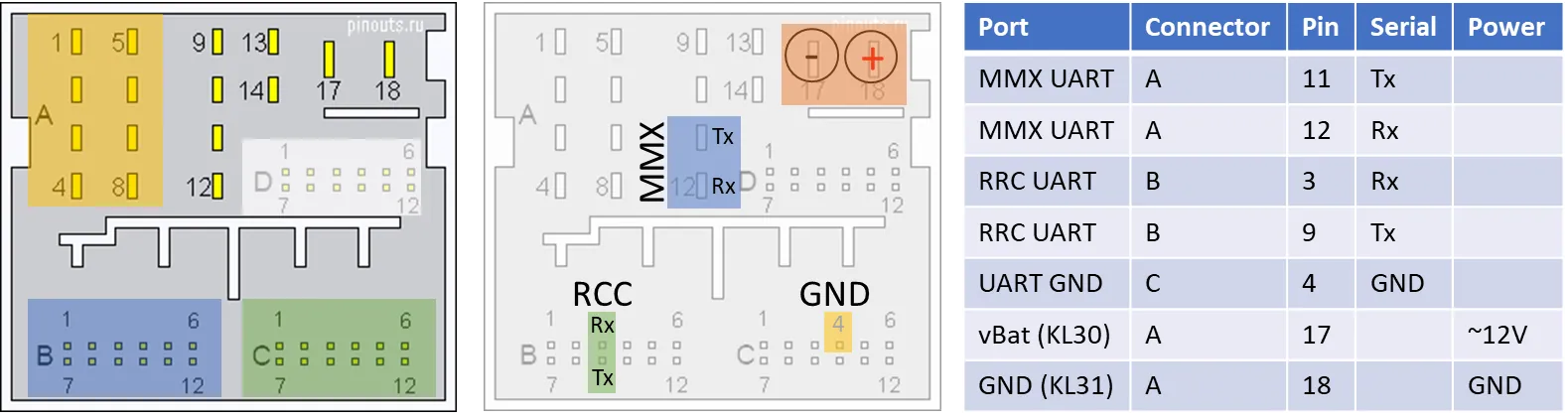

Quadlock pinout for connection to UART of RCC and MMX

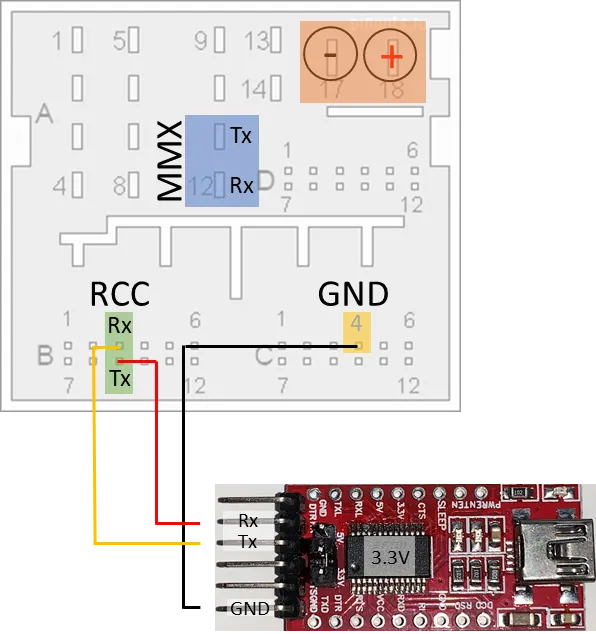

RCC UART connection:

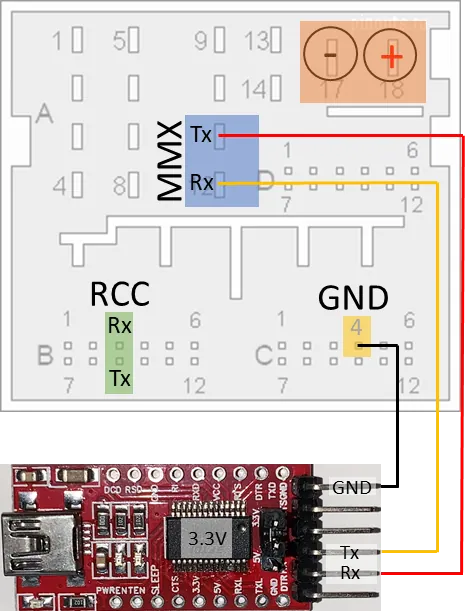

MMX UART connection:

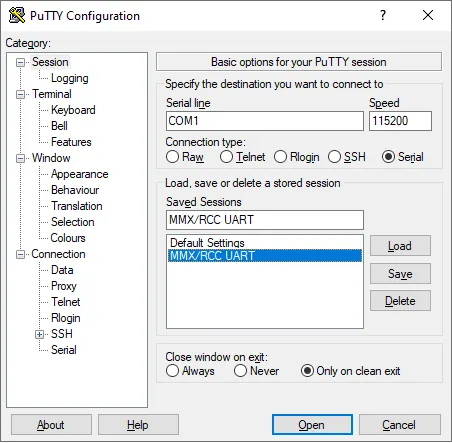

Connect to RCC or MMX UART with putty

Open Windows "Device Manager", open COM&LPT ports and find USB COM port number. Replace COM1 with correct port number from device manager.

Also check section about bench setup
