TTL and USB connection

TTL and USB connection

USB connection can be use as host with Dlink DUB-E100 for TLL, USB drive to update firmware and as client for recovery

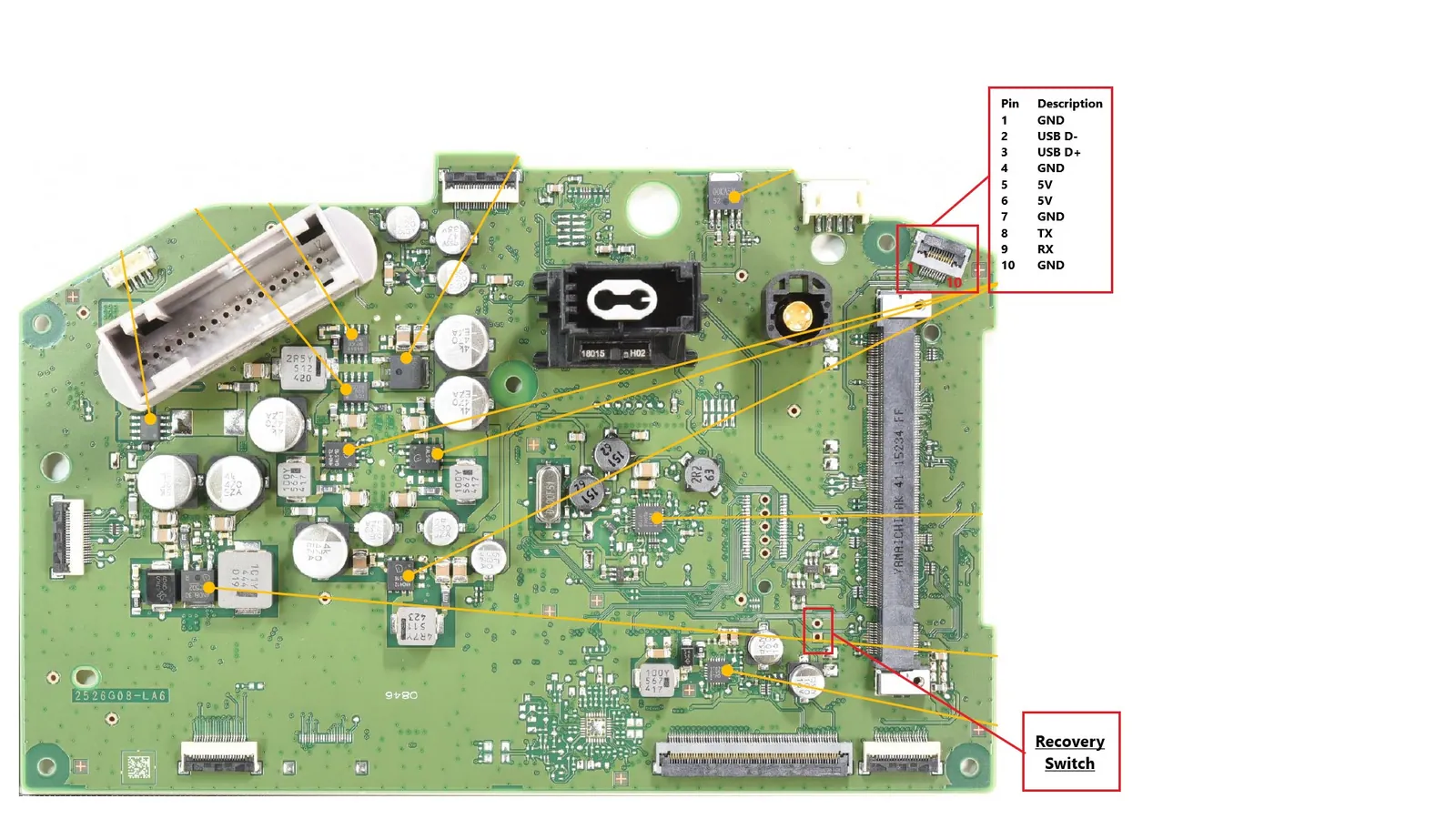

For USB MMX Recovery, you need to short Recovery Switch pins.

Cable and board for connection

Flexible Ribbon Cable for LCD TV DVD Player Laptop 10 Pins 0.5mm Pitch 150mm FPC FFC (A Type)

https://www.amazon.co.uk/sourcing-map-Flexible-Ribbon-Player/dp/B07RWNYH59

https://s.click.aliexpress.com/e/_c39K6ffN
PCB Converter Board Couple Extend Adapter FFC FPC 10 Pin 0.5mm 1mm Pitch to DIP 2.0mm

https://www.amazon.co.uk/sourcing-map-Converter-Couple-Adapter/dp/B07RS3KWZ3

https://s.click.aliexpress.com/e/_c4VazNgR
USB Port, Female, with screws:

https://s.click.aliexpress.com/e/_c3Lnle8b

In this section

JTAG connection to MMX

PreviousGreen Engineering Menu Next JTAG connection to MMX
