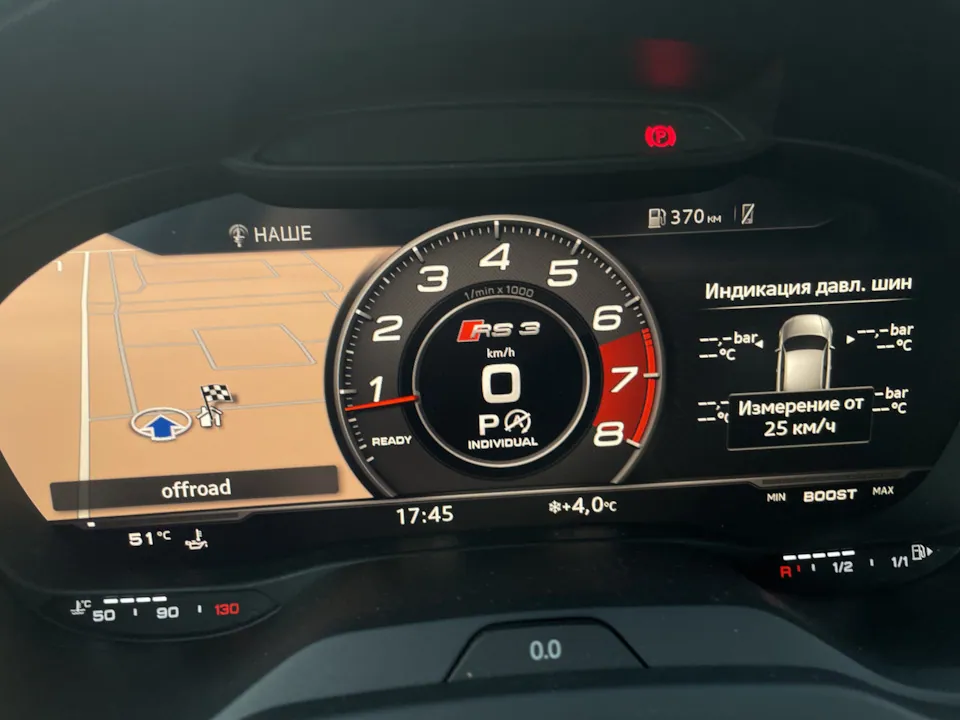

Sport Layout on FPK1 and Rainbow Shiftlight

ODIS procedure

1. Connect with module 0x17 ,

2. Change Session to Developer mode,

3. Enter Security Access code 20103,

4. Go to Special Function → Hex Service and send one of the commands:

   3D 14 03 00 3C 09 01 01 - for S style;

   3D 14 03 00 3C 09 01 03 - for RS style;

   3D 14 03 00 3C 09 01 00 - for stock setting;

5. If write fails and reply is 7F, check if engine is off, hood is open,

6. Send 11 01 to reboot instrument cluster.

CarScanner procedure

https://www.drive2.ru/b/637736536393130752/

CarScanner now supports this function for MQB vehicles.

VCP Script

Following script was tested and deemed safe, as it also creates a backup of the values changed, tests for requirements and even allows for different modes to be set:

https://mega.nz/file/etZiWI6a#eaHBINSIwk1K5EYRTMZpaRiGKkRi34gGtBN7uMQ-8eY

Raw UDS procedure

1. Connect with module 0x17

   UDS command: ???.

2. Change session to 0x4F

   UDS command: 10 4F.

3. Security access with 20103

   UDS command: 27 ???.

4. Read from memory; address 03 00 3C 09, len: 1 (this is for backup)

   UDS ReadMemoryByAddr command: 23 ???.

5. Write to memory address 03 00 3C 09, len: 1, data: 03

   UDS WriteMemoryByAddr command: 3D 14 03 00 3C 09 01 01

6. Read again to confirm changes.

   UDS ReadMemoryByAddr command: 23 ???.

7. Reboot instrument cluster

   UDS command: 11 01.

Reference

• Original post: https://www.drive2.ru/l/637547970148977368/
• CarScanner procedure: https://www.drive2.ru/b/637736536393130752/
• https://en.wikipedia.org/wiki/Unified_Diagnostic_Services
